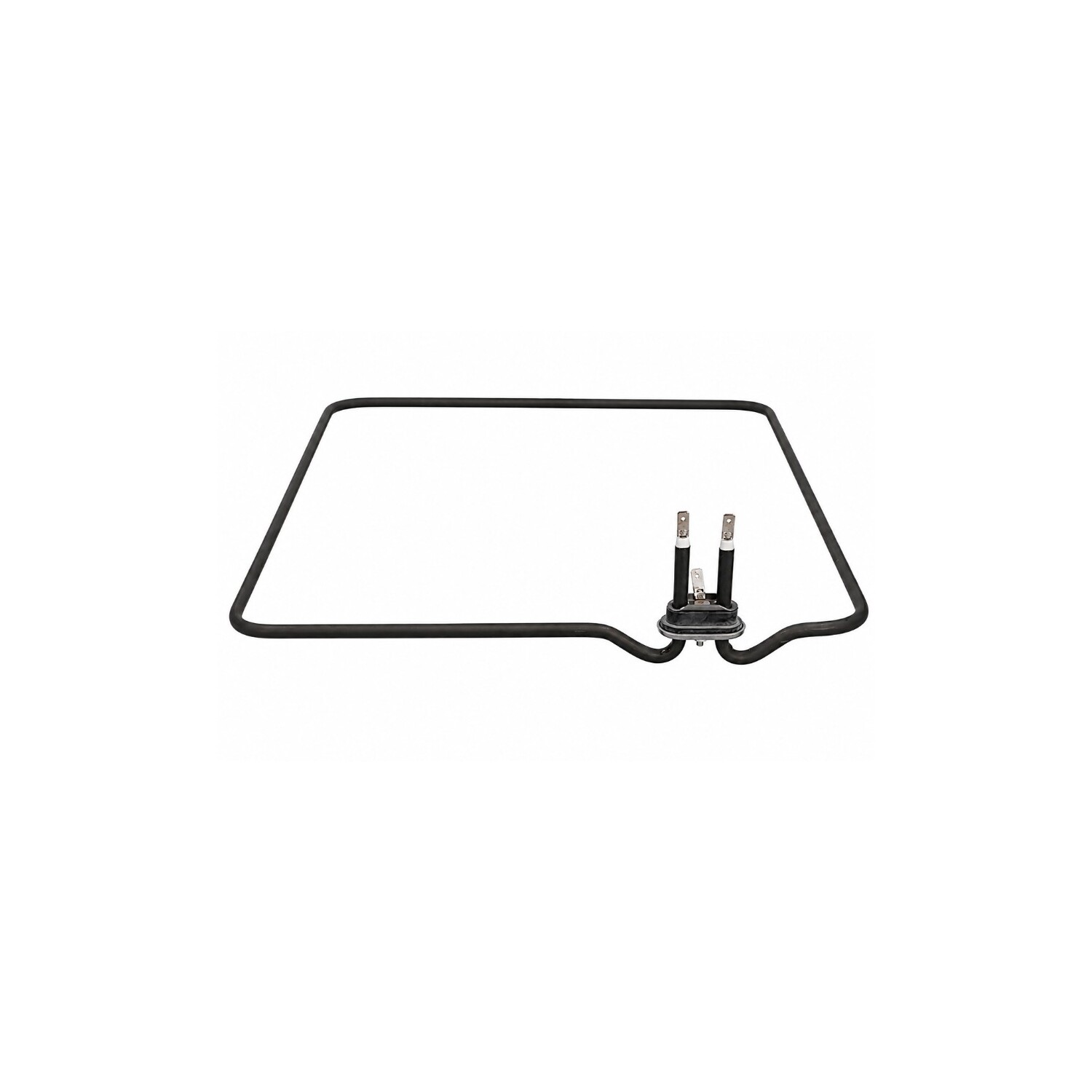

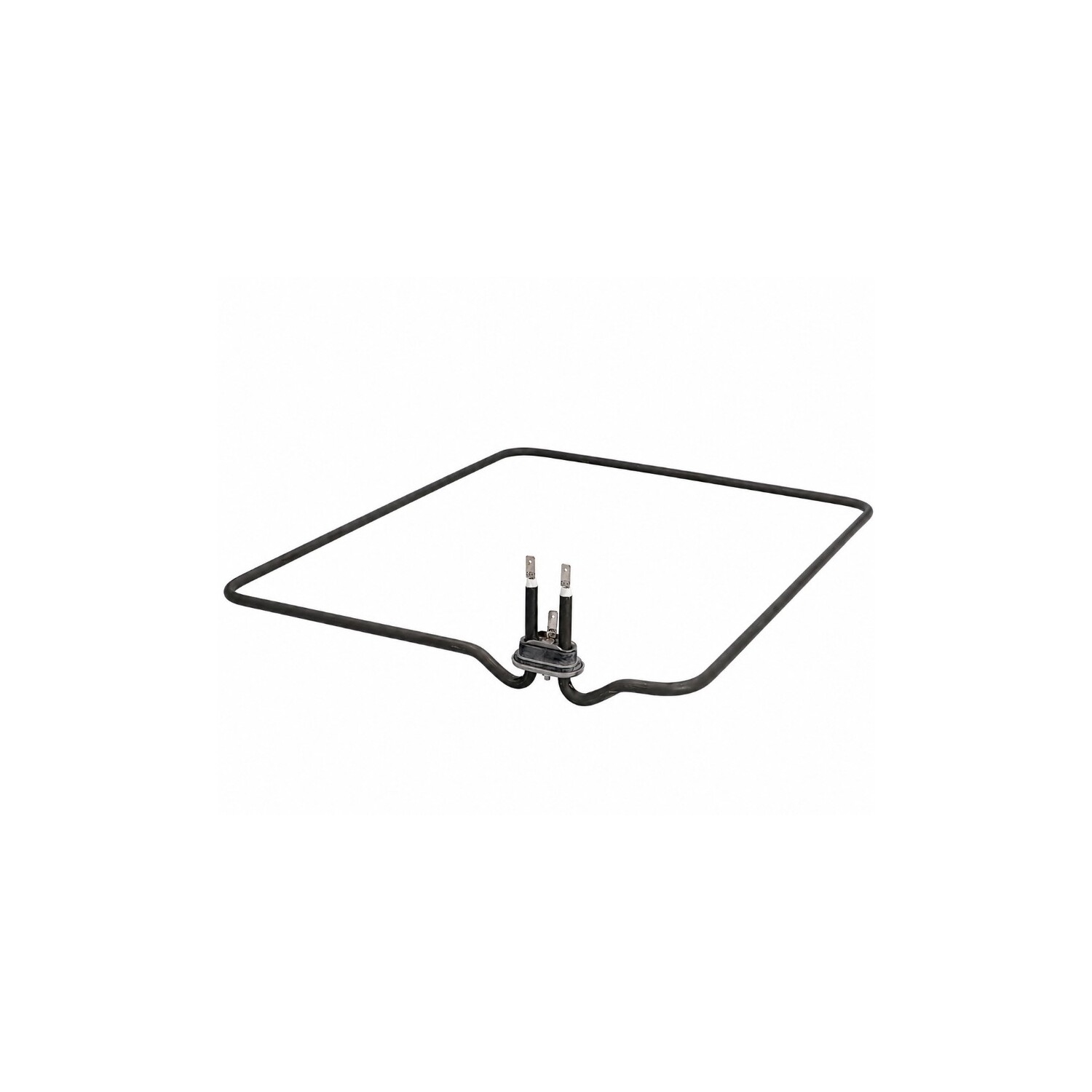

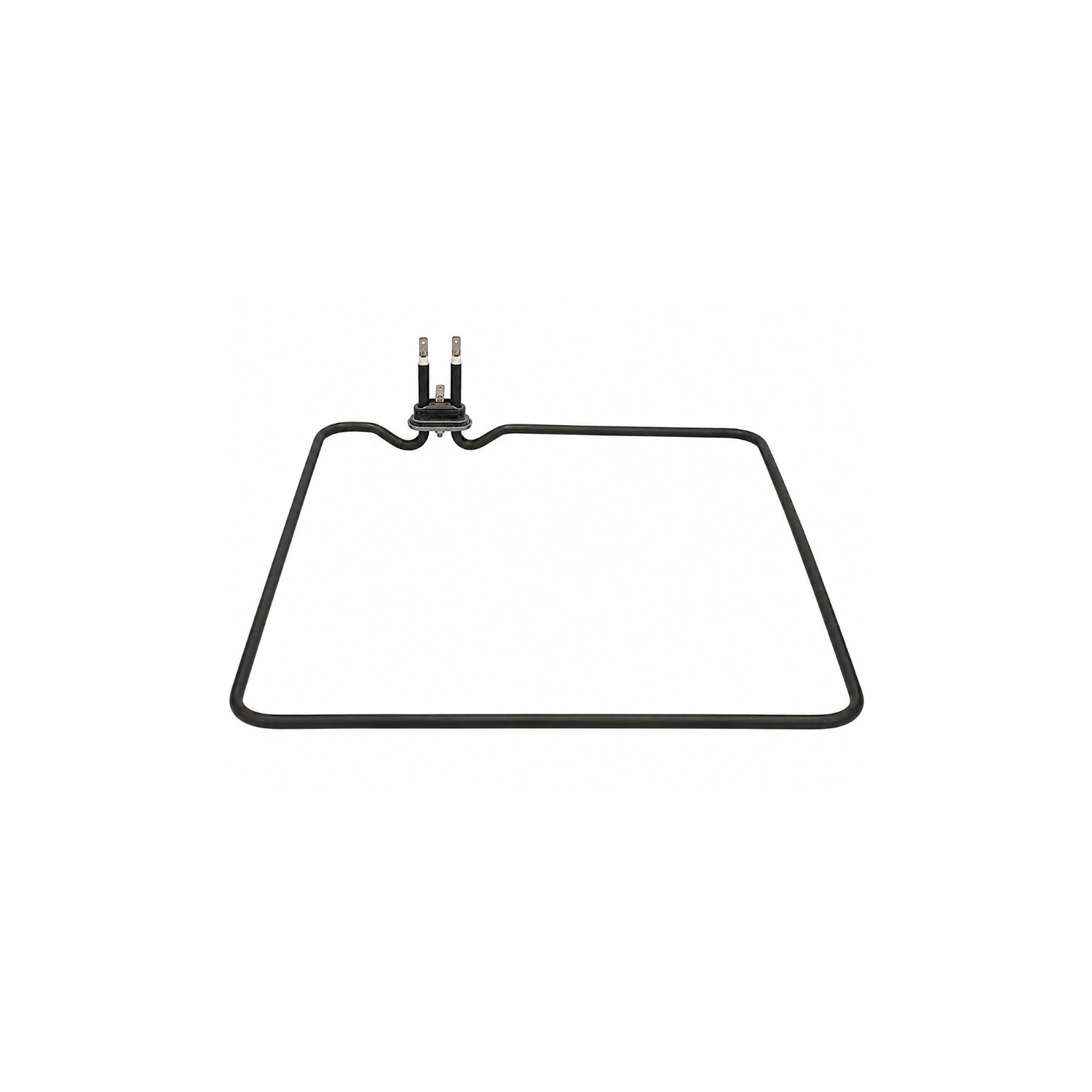

Heating Element 2394612 for Miele Dishwasher 3000W 230V Alternative

This is an alternative aftermarket spare part, not an original Miele spare part. It is designed as a compatible replacement for the corresponding original heating elements. It replaces, among others, Miele 2394612, 2394611, 2394610, 2240210 and 2240270, as well as other reference numbers listed below. The heating element may be marked 3000W 230V BES 9 24 4164. Before ordering, we recommend comparing the original part number, wattage, voltage, dimensions and electrical connections with the original heating element.

Technical specifications and dimensions

• Type: dishwasher heating element
• Voltage: 230 V
• Power: 3000 W
• Length: 488 mm
• Width: 396 mm
• Height: 89 mm
• Weight: 435 g
• Possible marking: 3000W 230V BES 9 24 4164
• Package contents: 1 pc

Replacement for original Miele spare parts

• Miele: 2394612, 2394611, 2394610, 2394613, 2240210, 2240270, 2240271, 2240272
• EAN / reference numbers: 4002511543843, 4002513059700, 4002513059762, 4002513059779, 4002513059786, 4002513072570, 4002513072587, 4002513072594
• EUROPART: 286331

Safety notice EN

Before replacing the heating element, always disconnect the dishwasher from the mains power supply and shut off the water supply. Installation must only be carried out with the power disconnected. Before installation, compare the wattage, voltage, dimensions and electrical connections of the replacement part with the original. After installation, check that the component is securely fitted, correctly connected and that there are no leaks. As this is an electrical component operating at mains voltage, installation by a qualified technician is recommended.

Zamiennik oryginalnych części zamiennych

MIELE: 2240210, 2240270, 2240271, 2240272, 2394610, 2394611, 2394612, 2394613, 4002511543843, 4002513059700, 4002513059762, 4002513059779, 4002513059786, 4002513072570, 4002513072587, 4002513072594
