Rezervni deli Pralni stroj Electrolux L 9WSB162C, 20230517

Pralni stroj Electrolux L 9WSB162C, 20230517

PNC: 914600368

Tehnični priročniki rezervnih delov

Začetek
Nazaj
1
2
Naprej
Konec

Stran 1 od 2

Rezultati 1 - 100 od 144

1327648000_A2152

Air chamber,g60 p10 - 1327648000 - p.811

Prodajna cena: 7,69 €

140068823016_A2152

Air duct, cooling fan - 140068823016 - p.488

Prodajna cena: 14,79 €

8077823089_A2152

Air duct, drying - 8077823089 - p.435

Prodajna cena: 298,49 €

140054718295_A2152

Aqua-control, bottom, g60, uimc, hp - 140054718295 - p.110

Prodajna cena: 27,77 €

1327804017_A2152

Bolt,damper lining - 1327804017 - p.623A

Prodajna cena: 5,67 €

1322295427_A2152

Bolts set, washer, pulley - 1322295427 - p.620A

Prodajna cena: 12,31 €

1325014015_A2152

Buffer,upper,pump body - 1325014015 - p.840B

Prodajna cena: 2,94 €

140040103016_A2152

Button, white, square, on/off - 140040103016 - p.272

Prodajna cena: 8,19 €

8079433010_A2152

Cabinet, main electronics, ewx13 - 8079433010 - p.588

Prodajna cena: 8,57 €

1297196030_A2152

Cable duct,power cable - 1297196030 - p.523

Prodajna cena: 9,75 €

8080198032_A2152

Cable, wire harness, capacitor - 8080198032 - p.999

Prodajna cena: 20,92 €

8082063028_A2152

Cable, wire harness, compressor, drying - 8082063028 - p.999

Prodajna cena: 10,80 €

8085060039_A2152

Cable, wire harness, door lock - 8085060039 - p.999

Prodajna cena: 10,75 €

140026598023_A2152

Cable, wire harness, drain pump - 140026598023 - p.999

Prodajna cena: 23,23 €

8081670021_A2152

Cable, wire harness, fan motor, drying - 8081670021 - p.999

Prodajna cena: 22,60 €

1327692446_A2152

Cable, wire harness, pressure sensor, temperature sensing element - 1327692446 - p.999

Prodajna cena: 24,79 €

1328255060_A2152

Cable, wire harness, printed circuit board, main electronics - 1328255060 - p.999

Prodajna cena: 9,49 €

140100553019_A2152

Cable, wire harness, temperature probe, printed circuit board - 140100553019 - p.999

Prodajna cena: 27,64 €

8081996012_A2152

Cable, wire harness, temperature sensing element, drying - 8081996012 - p.999

Prodajna cena: 27,35 €

8080197026_A2152

Cable, wire harness, temperature sensing element, printed circuit board - 8080197026 - p.999

Prodajna cena: 11,43 €

8082081038_A2152

Cable, wire harness, textile fiber filter, main electronics - 8082081038 - p.999

Prodajna cena: 9,28 €

140100664014_A2152

Cable, wire harness, weight, sensor - 140100664014 - p.999

Prodajna cena: 9,28 €

1325599023_A2152

Cap,support,cushion - 1325599023 - p.181

Prodajna cena: 5,76 €

8585390900159_A2152

Clamp - 8585390900159 - p.999

Prodajna cena: 6,01 €

5331182203_A2152

Clamp, 18.2 - 5331182203 - p.999

Prodajna cena: 3,82 €

5331221282_A2152

Clamp, hose clip - 5331221282 - p.999

Prodajna cena: 1,93 €

1327680011_A2152

Clip, Hose, Drain, Rear - 1327680011 - p.831A

Prodajna cena: 10,17 €

140118577117_A2152

Compressor - 140118577117 - p.485

Prodajna cena: 187,29 €

1240344752_A2152

Condenser - 1240344752 - p.486

Prodajna cena: 36,05 €

140020904243_A2152

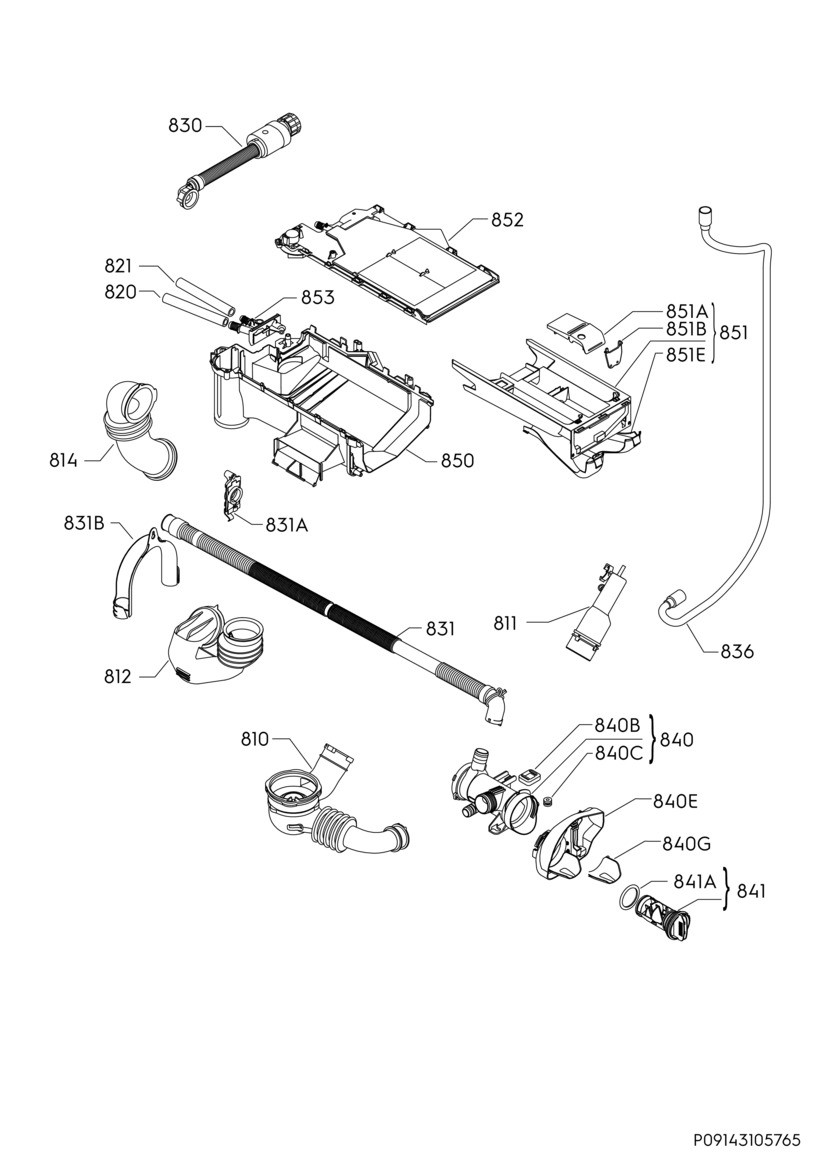

Connection hose, overflow protection - 140020904243 - p.830

Prodajna cena: 45,83 €

4055739405_A2152

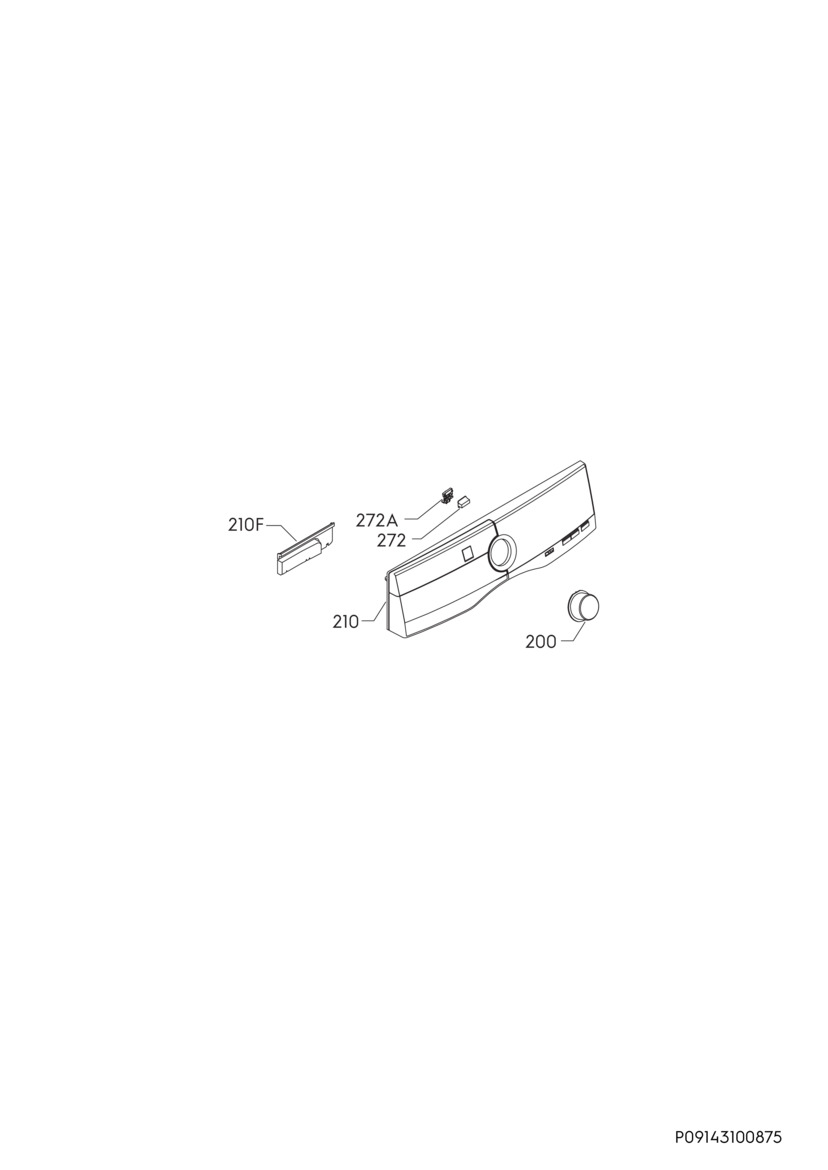

Control panel - 4055739405 - p.210

Prodajna cena: 135,86 €

140068853013_A2152

Cooling fan, compressor - 140068853013 - p.487

Prodajna cena: 58,56 €

1327688428_A2152

Counterweight, front part - 1327688428 - p.621F

Prodajna cena: 66,84 €

140071978021_A2152

Counterweight, upper part - 140071978021 - p.621T

Prodajna cena: 26,76 €

8070263036_A2152

Cover, converter, electronics - 8070263036 - p.585

Prodajna cena: 6,34 €

140042362024_A2152

Cover, detergent drawer - 140042362024 - p.851A

Prodajna cena: 12,06 €

140141510010_A2152

Cover, drain pump - 140141510010 - p.506A

Prodajna cena: 5,21 €

140067542013_A2152

Cover, fan - 140067542013 - p.170B

Prodajna cena: 27,73 €

8079951037_A2152

Cover, noise suppression filter - 8079951037 - p.537A

Prodajna cena: 5,17 €

8077560012_A2152

Cover,door lock,latch - 8077560012 - p.521A

Prodajna cena: 10,84 €

140004668251_A2152

Cuff - 140004668251 - p.608

Prodajna cena: 71,50 €

4055398699_A2152

Detergent drawer - 4055398699 - p.851

Prodajna cena: 98,73 €

140037566019_A2152

Detergent flush hose - 140037566019 - p.812

Prodajna cena: 24,95 €

140000285167_A2152

Dispenser compartment - 140000285167 - p.850

Prodajna cena: 56,88 €

140061935858_A2152

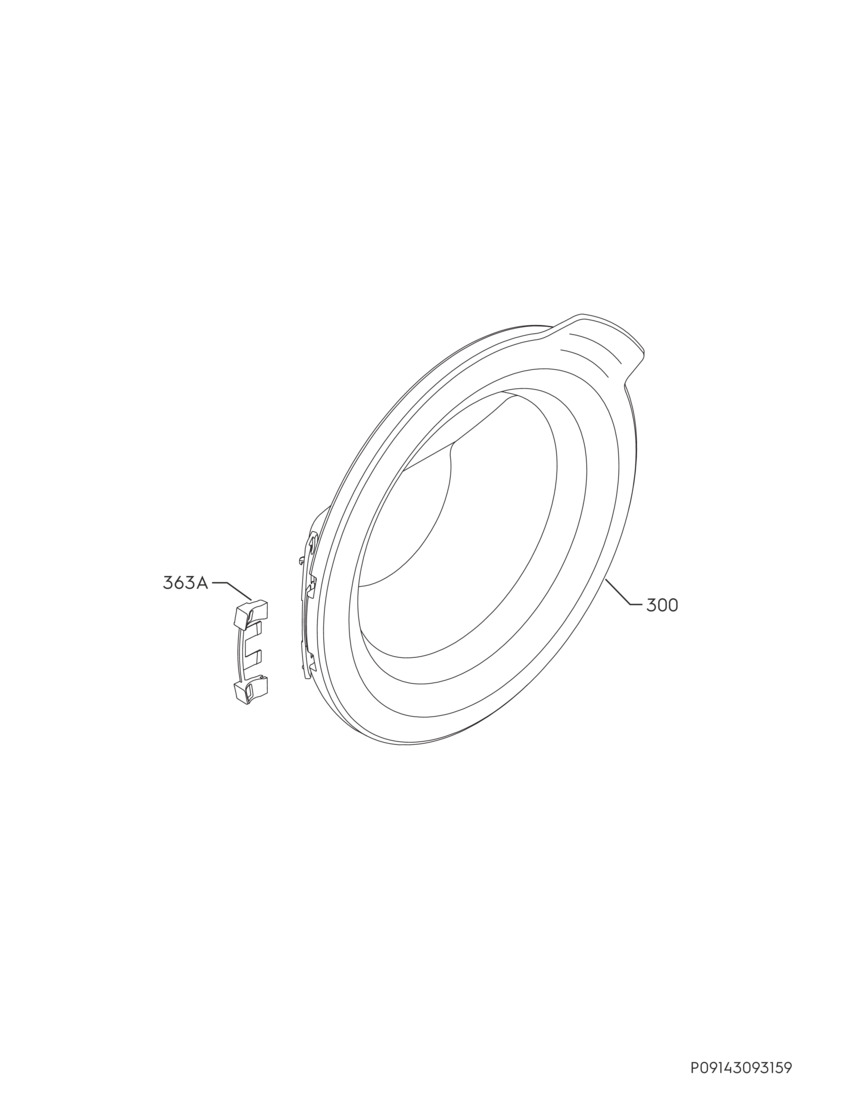

Door - 140061935858 - p.300

Prodajna cena: 118,22 €

140036536013_A2152

Door lock - 140036536013 - p.171C

Prodajna cena: 14,96 €

8084553067_A2152

Door lock - 8084553067 - p.521

Prodajna cena: 36,97 €

140037486176_A2152

Door, diaphragm, pump body - 140037486176 - p.171

Prodajna cena: 9,87 €

1242916003_A2152

Drain hose end piece - 1242916003 - p.831B

Prodajna cena: 5,42 €

140063645018_A2152

Drainage channel, drainage - 140063645018 - p.840G

Prodajna cena: 9,62 €

8581323531203_A2152

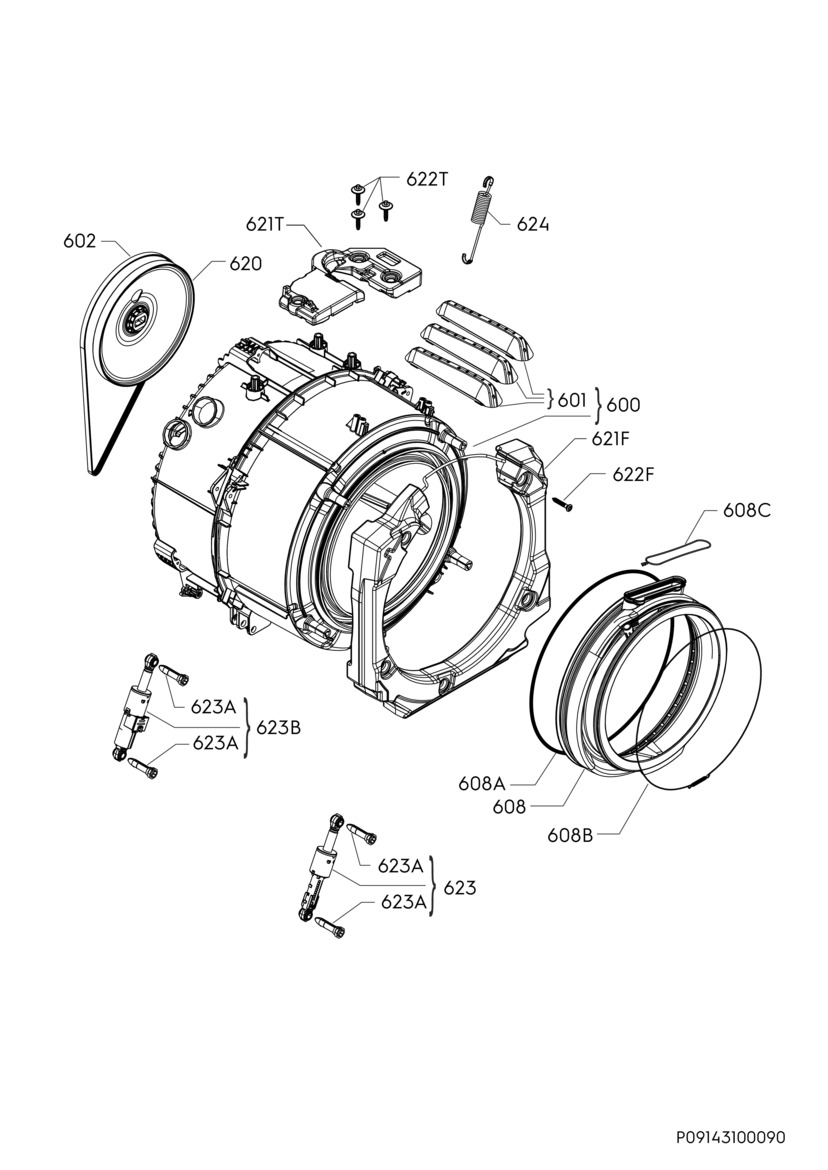

Drive belt - 8581323531203 - p.602

Prodajna cena: 16,64 €

4055367900_A2152

Drum rib, set, 3 pcs. - 4055367900 - p.601

Prodajna cena: 34,53 €

973914600368034_A2152

Electronics configured - 973914600368034 - p.587

Prodajna cena: 164,26 €

982140059690129_A2152

Electronics configured - 982140059690129 - p.581

Prodajna cena: 213,54 €

140011633991_A2152

Electronics not configured - 140011633991 - p.587

Prodajna cena: 129,77 €

4055859062_A2152

Electronics not configured, control electronics - 4055859062 - p.587A

Prodajna cena: 186,95 €

140112864420_A2152

Electronics, converter - 140112864420 - p.586

Prodajna cena: 165,69 €

1320712001_A2152

Filter Seal - 1320712001 - p.841A

Prodajna cena: 12,06 €

140064864014_A2152

Filter, kit, membrane - 140064864014 - p.841

Prodajna cena: 10,80 €

1325562013_A2152

Fixing ring - 1325562013 - p.608B

Prodajna cena: 7,98 €

1327678015_A2152

Flap, partition - 1327678015 - p.851B

Prodajna cena: 14,54 €

8581326842110_A2152

Float switch - 8581326842110 - p.512

Prodajna cena: 20,88 €

140064870011_A2152

Front cover, pump housing - 140064870011 - p.840E

Prodajna cena: 51,63 €

140010756470_A2152

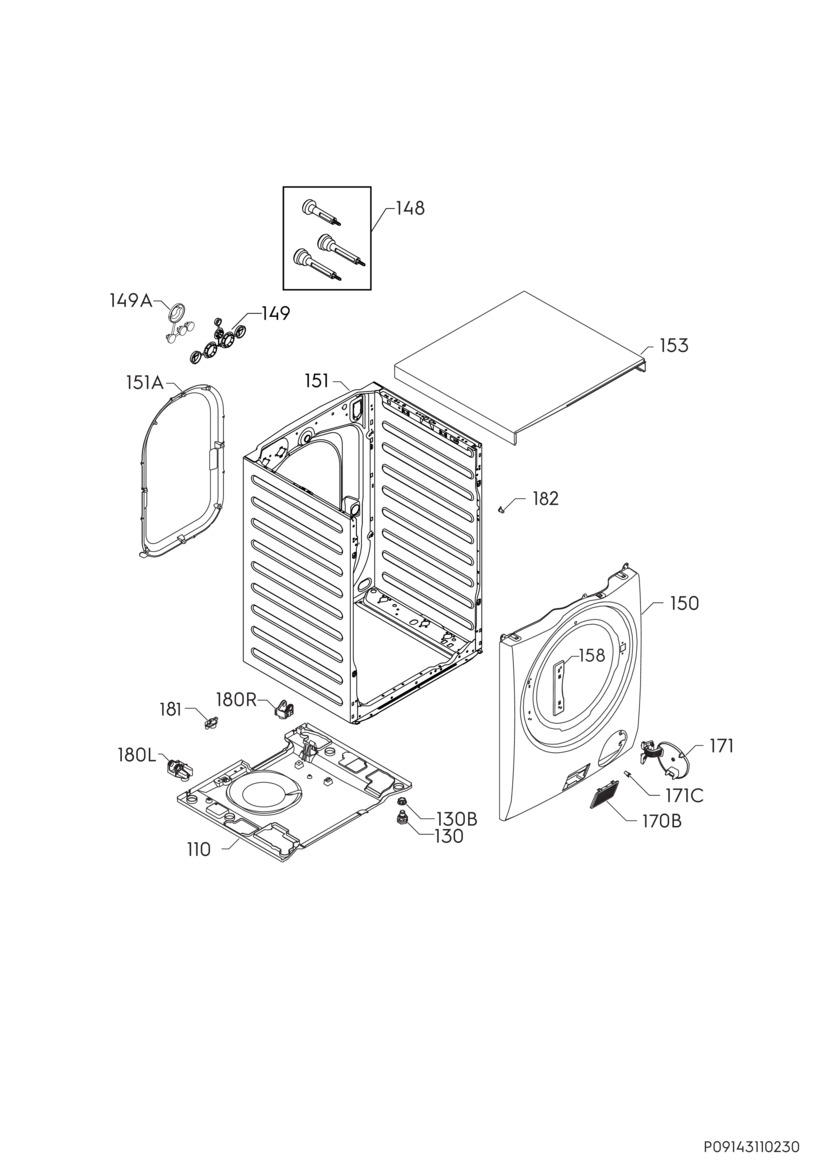

Front panel, casing - 140010756470 - p.150

Prodajna cena: 80,58 €

8076956013_A2152

Gasket, air duct, upper part - 8076956013 - p.435A

Prodajna cena: 11,51 €

1327350532_A2152

Harness,user interface board,m - 1327350532 - p.999

Prodajna cena: 27,85 €

140163226032_A2152

Heating element - 140163226032 - p.510

Prodajna cena: 38,15 €

8076937039_A2152

Hose, air outlet, drum - 8076937039 - p.814

Prodajna cena: 35,04 €

8078024026_A2152

Hose, drying worktop, drain pump - 8078024026 - p.836

Prodajna cena: 14,45 €

140040247102_A2152

Knob, program selector - 140040247102 - p.200

Prodajna cena: 22,14 €

8074847016_A2152

Lever, door lock, hole, 397mm - 8074847016 - p.518

Prodajna cena: 7,48 €

140135488025_A2152

Lid, door hinge - 140135488025 - p.363A

Prodajna cena: 9,12 €

8072928016_A2152

Lid, electronics, drying - 8072928016 - p.588H

Prodajna cena: 6,13 €

8077864026_A2152

Lid, temperature sensing element - 8077864026 - p.471B

Prodajna cena: 5,13 €

8080484036_A2152

Microswitch - 8080484036 - p.469

Prodajna cena: 17,48 €

8080235347_A2152

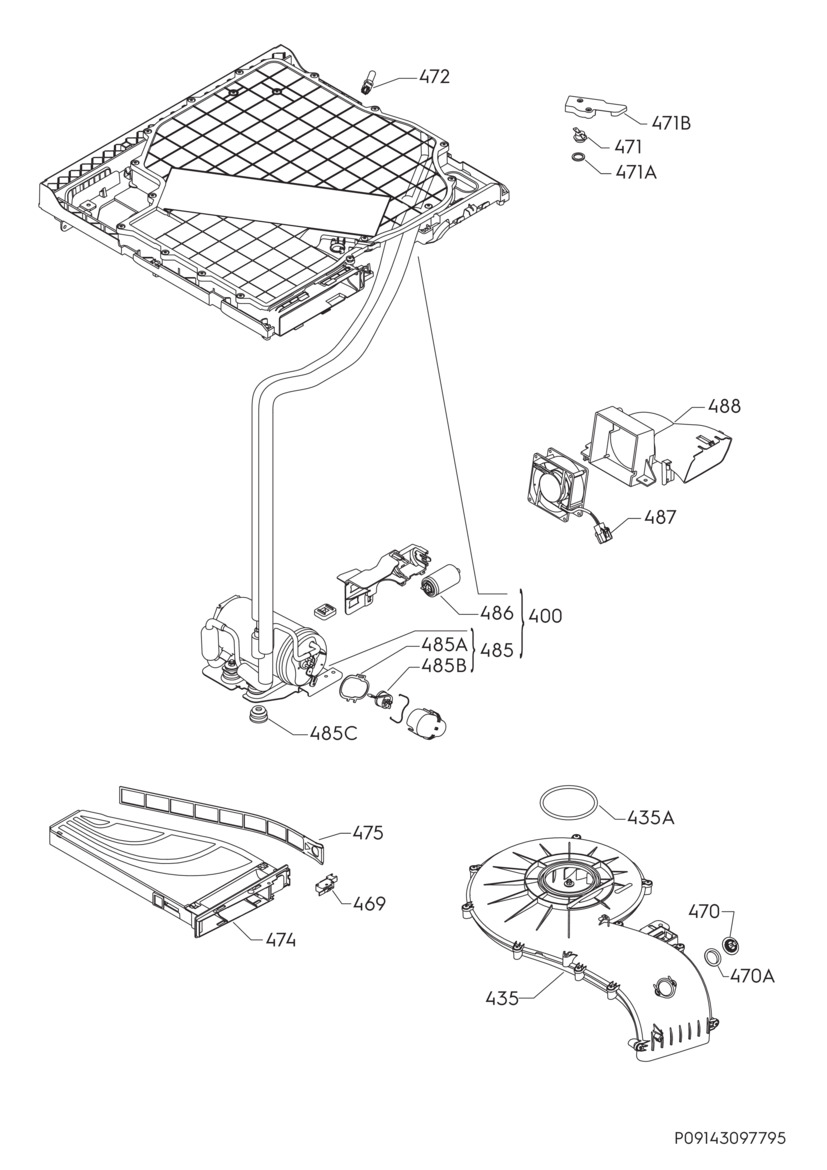

Module, drying - 8080235347 - p.400

Prodajna cena: 430,70 €

1240222016_A2152

Motor screw - 1240222016 - p.504C

Prodajna cena: 3,02 €

140118774011_A2152

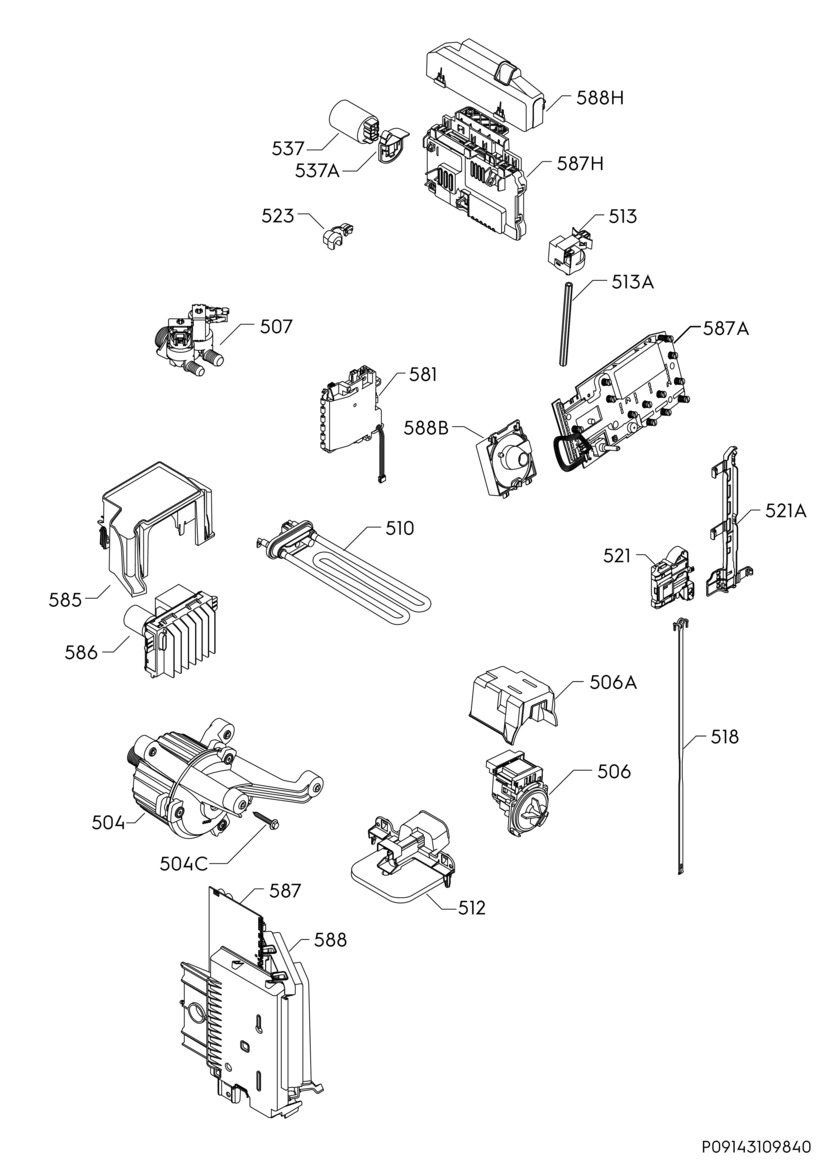

Motor, induction - 140118774011 - p.504

Prodajna cena: 132,50 €

1328249014_A2152

Mounting bracket, drain channel - 1328249014 - p.608C

Prodajna cena: 7,35 €

50224329008_A2152

Nut for screw - 50224329008 - p.999

Prodajna cena: 2,98 €

1364063147_A2152

Overload cut-out, compressor - 1364063147 - p.485B

Prodajna cena: 25,80 €

1324768009_A2152

Peg,front panel,catch - 1324768009 - p.182

Prodajna cena: 4,96 €

1324471133_A2152

Plug, holes, rear wall of the casing - 1324471133 - p.149A

Prodajna cena: 7,10 €

3793813100_A2152

Plug, set - 3793813100 - p.999

Prodajna cena: 17,14 €

8073865159_A2152

Printed circuit board - 8073865159 - p.587H

Prodajna cena: 120,66 €

140040357059_A2152

Program selector - 140040357059 - p.588B

Prodajna cena: 5,59 €

4055191383_A2152

Pulley, kit, plastic - 4055191383 - p.620

Prodajna cena: 59,19 €

4055391496_A2152

Pump housing - 4055391496 - p.840

Prodajna cena: 42,43 €

140005213032_A2152

Reinforcement, suspension - 140005213032 - p.158

Prodajna cena: 12,18 €

4055490405_A2152

Rubber shock absorber, compressor - 4055490405 - p.485C

Prodajna cena: 17,18 €

1328306004_A2152

Screw, 3.5x11 - 1328306004 - p.999

Prodajna cena: 4,58 €

4055367918_A2152

Screw, counterweight, front part - 4055367918 - p.622F

Prodajna cena: 25,96 €

4055519492_A2152

Screw, door hinge, 2 pcs, 4.8x11 - 4055519492 - p.999

Prodajna cena: 11,34 €

1325079133_A2152

Screw,4,9x15 ttl torx - 1325079133 - p.999

Prodajna cena: 3,40 €

4055367926_A2152

Screw,counterweight,top,3pcs, - 4055367926 - p.622T

Prodajna cena: 15,80 €

8588076857016_A2152

Seal - 8588076857016 - p.999

Prodajna cena: 12,98 €

8077865015_A2152

Seal, temperature sensing element - 8077865015 - p.471A

Prodajna cena: 12,14 €

140109941017_A2152

Seal, terminal box cover - 140109941017 - p.485A

Prodajna cena: 10,21 €

4055370763_A2152

Shock absorber with pin - 4055370763 - p.623

Prodajna cena: 33,55 €

1325142006_A2152

Space compensator,fixing,pump - 1325142006 - p.840C

Prodajna cena: 5,04 €
